Lead-free Chain Conveyor SMT Reflow Oven 1160*350mm BGA Soldering Oven 8 Temperature Zone (up5+bottom3)
Infrared & Hot air Soldering Reflow Machine, CE declaration Puhui T981 Double-Sided PCB, For Small SMT line
| Model | T-981 |
| The heating zone quantity | Upper5/down3 |
| The length of the heating zone | 1160mm |
| The heating type | IR and hot air heating |
| The cooling zone quantity | 1 |
| Maximum width of PCB | Chain conveyor 350mm ; Mesh conveyor 400mm |
| The operation direction | left→right |
| Delivery options | Mesh conveyor + Automatic chain conveyor |
| PCB heating time | 100-600s |
| The power supply | 3 phase 5 lines (220/380V) 50/60Hz |
| Peak power | 13.2KW |
| Average power | 7.0KW |
| Heating up time | ≤ 20 mins |
| Temperature control range | Room temperature～350℃ |
| Temperature control mode | PID closed-loop control |
| Temperature control accuracy | ±1℃ |
| PCB temperature distribution deviation | ±2℃ |
| Overall dimensions | 1940mm×735mm×610mm |
| Net weight | 195KG |
Features:
1.Puhui T-981 reflow oven employs IR and Hot air heating technology, uniform temperature distribution,suitable for medium-volume continuous soldering of LED board,strips / single/ double-sided PCBs in all packaging forms such as CHIP, SOP, PLCC, QFP and BGA components etc.
2.Chain-conveyor as the main transmission method, supplemented by a stainless steel mesh belt, which is durable, wear-resistant, and operates smoothly with precise speed control up to ±10mm/min. Convenient to build various SMT Production Line due to the design of chain type.
3.Equipped with a powerful touch screen module that integrates operation, display, monitoring, providing more intuitive displays and simpler operations, facilitating product upgrades.
T981 reflow oven pictures:

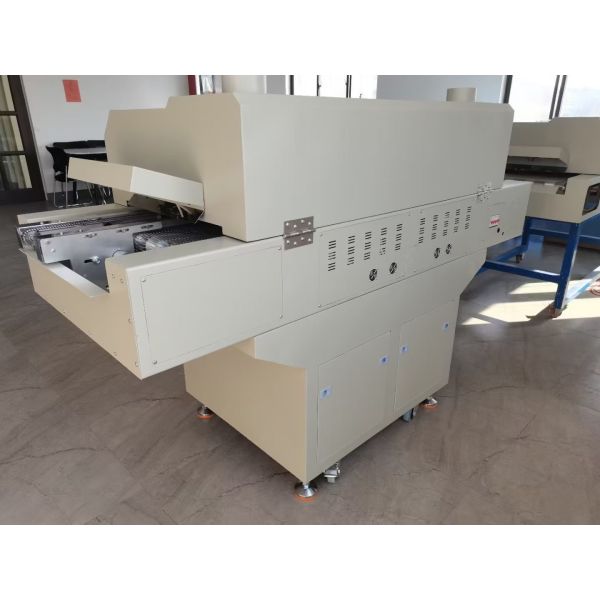

Front side:
Back side:
Chain conveyor (350mm width), mesh conveyor 400mm:

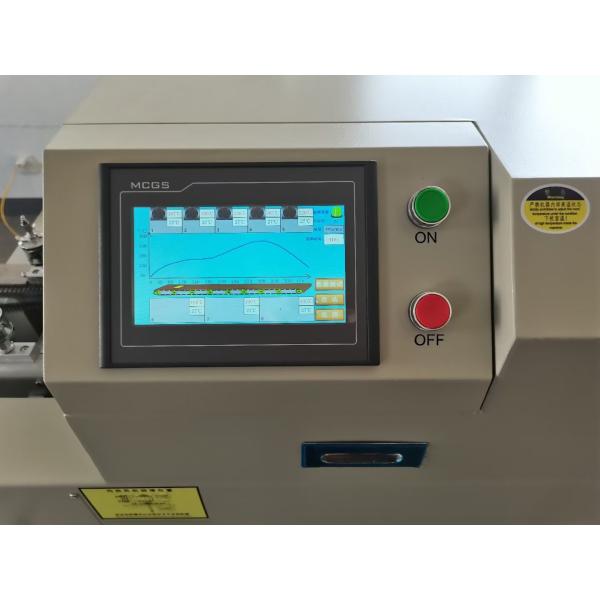

Touch screen:
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
